B560M MORTAR WIFI

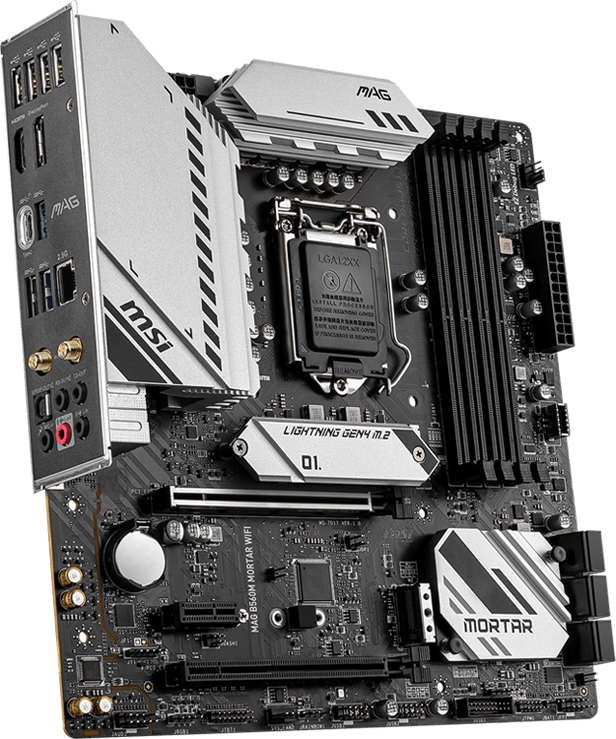

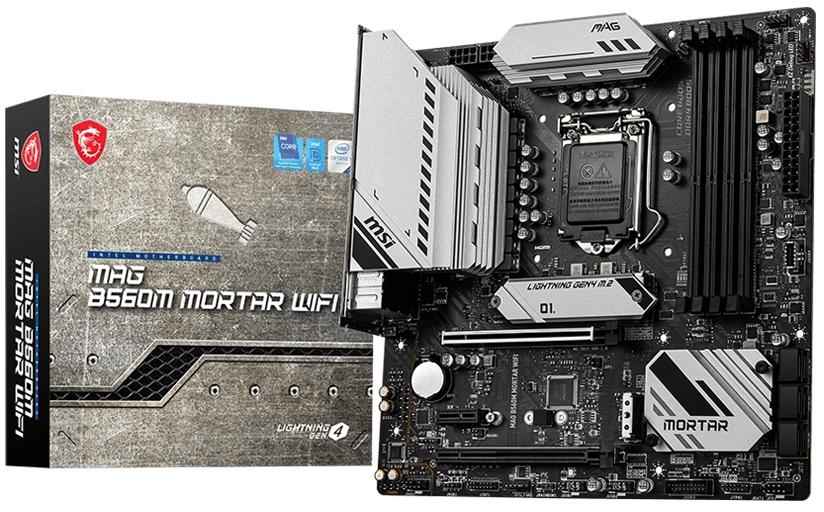

MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard

MSI - MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard, Intel B560 Chipset, 4 DIMM slots, 2x PCI-e x16, 1x PCI-e x1, 2x M.2 slot, 1x Realtek 8125b 2.5G LAN, Intel Wi-Fi 6e AX210, Bluetooth, USB 3.2 ports, USB 2.0 ports, DisplayPort, HDMI, Crossfire, 6x SATA 6Gb/s ports, 7.1-channel high definition audio
No stock at suppliers. print


B560M MORTAR WIFI MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard Image 2
B560M MORTAR WIFI MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard Image 3
B560M MORTAR WIFI MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard Image 4
B560M MORTAR WIFI MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard Image 5
Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. B560M MORTAR WIFI MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard is available from MSI Laptops and it is sold as new from our Motherboards: Intel LGA1200 10th/11th gen range of products. For reference purposes, the price of R3255 is valid 2026-09-02, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Motherboards: Intel LGA1200 10th/11th gen category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

B560M MORTAR WIFI

MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard

MSI MAG B560m Mortar WiFi Intel 11th gen LGA 1200 mATX Motherboard, Intel B560 Chipset, 4 DIMM slots, 2x PCI-e x16, 1x PCI-e x1, 2x M.2 slot, 1x Realtek 8125b 2.5G LAN, Intel Wi-Fi 6e AX210, Bluetooth, USB 3.2 ports, USB 2.0 ports, DisplayPort, HDMI, Crossfire, 6x SATA 6Gb/s ports, 7.1-channel high definition audio

Overview:

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

CORES AND HIGHER PERFORMANCE
With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether youre a gamer, prosumer, or PC enthusiast.

LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Features:

MAG B560M MORTAR WIFI
  • Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology

Specifications:

© 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeB560M MORTAR WIFIspacer
Qucik Spec
CPU (Max Support)i9
Socket1200
ChipsetIntel B560 Chipset
DDR4 Memory5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory ChannelDual
DIMM Slots4
Max Memory (GB)128
PCI-E x162
PCI-E x11
SATAIII6
M.2 Slot2
LAN1x Realtek 8125B 2.5G LAN
WiFi & BluetoothIntel Wi-Fi 6E AX210
USB 3.2 ports (Front)1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear)1(Gen 2x2, Type C), 3(Gen 1, Type A)
USB 2.0 ports (Front)4
USB 2.0 ports (Rear)4
Audio ports (Rear)Realtek ALC897 Codec
DisplayPort1
HDMI1
Form FactorM-ATX
CrossFireY
Operating SystemSupport for Windows 10 64-bit
Detailed Spec
ProcessorSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
1. Please go to intel.com for compatibility information.
ChipsetIntel B560 Chipset
Memory4 x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Expansion Slot2x PCIe x16 slots
1. Support x16/ x4
2. PCI_E1 (from CPU)
1. Support up to PCIe 4.0 for 11th Gen Intel CPU
2. Support up to PCIe 3.0 for 10th Gen Intel CPU
3. PCI_E3 (From B560 chipset)
1. Support up to PCIe 3.0
1x PCIe 3.0 x1 slot
1. PCI_E2 (From B560 chipset)
1. PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.
Onboard Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
1. Available only on processors featuring integrated graphics
2. Graphics specifications may vary depending on the CPU installed.
Multi-GPUSupports 2-way AMD CrossFire Technology
Storage6x SATA 6Gb/s ports (from B560 chipset)
2x M.2 slots (Key M)
M2_1 slot
1. Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
2. Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
3. Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B560 chipset)
1. Supports up to PCIe 3.0x4
2. Supports 2242/ 2260/ 2280 storage devices
3. Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USBIntel B560 Chipset
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector
4x USB 2.0 ports on the back panel
USB Hubs ASM1074
3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Hub-GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN1x Realtek RTL8125B 2.5Gbps LAN controller
Wireless LAN & Bluetoothntel WiFi 6E AX210
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2/
2, FIPS, FISMA
1. Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.
Internal connectors1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Tuning Controller Connector
1x TBT connector (Supports RTD3)
LED Feature1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED
Back panel ports1. USB 2.0
2. DisplayPort
3. USB 3.2 Gen 1 5Gbps Type-A
4. 2.5G LAN Port
5. Wi-Fi / Bluetooth Antenna
6. HD Audio Connectors
7. HDMI
8. USB 3.2 Gen 2x2 20Gbps Type-C
9. USB 3.2 Gen 1 5Gbps Type-A
10. Optical S/PDIF OUT
