Z890 GAMING PLUS WIFI6E

MSI Z890 Gaming Wifi 6E Intel Core Ultra Socket LGA 1851 ATX Motherboard

MSI Z890 Gaming Wifi 6E Intel Core Ultra Socket LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI, 1x DisplayPort, 4x PCI-e x16 slot, PCI_E1 Gen PCI-e 5.0 supports up to x16, PCI_E2 Gen PCI-e 3.0 supports up to x1, PCI_E3 & PCI_E4 Gen PCI-e 4.0 supports up to x4, 7.1-channel High Definition Audio, 3x M.2 supports up to PCI-e 5.0 x4, 4x SATA 6G Ports, USB 5Gbps Type-A, USB 20Gbps Type-C, Realtek 8125d 2.5Gbps LAN, Wi-Fi 6E, Bluetooth, Audio connectors

Overview:

Intel LGA1851 ATX Gaming Motherboard | PCIe 5.0 & DDR5 | Wi-Fi 6E & 2.5G LAN | Triple M.2 | USB 20Gbps

Quick Specs

• Dominate with Intel Core Ultra (Series 2) support on the LGA1851 socket, built for next-generation gaming and AI workloads.
• Achieve blistering memory speeds with DDR5 support across 4 slots, up to 256 GB and overclocking up to 8800+ MT/s with XMP 3.0.
• Connect at full speed with Wi-Fi 6E (up to 2.4 Gbps), 2.5G LAN, and a rear USB 20Gbps Type-C port for the fastest peripherals.
• Experience lightning-fast storage with a PCIe 5.0 x4 M.2 slot and two additional PCIe 4.0 x4 M.2 slots - three in total.
• Build with confidence thanks to MSI's EZ PCIe Clip II, pre-installed I/O shield, M.2 Shield Frozr, and Extended Heatsink design.

Description:

The MSI Z890 GAMING WIFI6E is an Intel Z890 ATX gaming motherboard designed for demanding PC builds using Intel Core Ultra Series 2 processors. With the LGA1851 socket, DDR5 memory support, PCIe 5.0 connectivity, triple M.2 storage and fast wired and wireless networking, it provides a strong platform for gaming, content creation and AI workloads.

Its robust power delivery and thermal design are intended for sustained performance, while the range of expansion options makes it suitable for both high-performance gaming systems and versatile workstation builds. Wi-Fi 6E, Bluetooth 5.3 and 2.5Gbps LAN provide flexible network connectivity, while USB 20Gbps support helps keep modern peripherals and external storage running at high speeds.

Features:

Built for High Performance Gaming and AI PCs
Designed around the Intel Z890 chipset and LGA1851 socket, the MSI Z890 GAMING WIFI6E supports Intel Core Ultra Series 2 processors. This makes it a suitable foundation for gaming PCs, creative workstations and systems that take advantage of AI acceleration.

The ATX motherboard provides four DDR5 UDIMM slots with support for up to 256GB of memory. With Intel XMP 3.0 and supported memory overclocking speeds of up to 8800+ MT/s, builders can configure high-speed memory for demanding applications and gaming.

Reliable Power Delivery and Thermal Management
The 12+1+1+1 Duet Rail Power System is paired with dual 8-pin CPU power connectors and MSI Core Boost technology. A 6-layer server-grade PCB provides the foundation for stable operation, while the Extended Heatsink and 7W/mK MOSFET thermal pads help manage heat around the power delivery components.

This combination is designed to maintain consistent performance during extended CPU workloads, gaming sessions and demanding applications.

PCIe 5.0 Expansion for Modern Graphics Cards
The primary PCIe x16 slot supports PCIe 5.0 x16 directly from the processor. Steel Armor reinforcement adds additional support around the main graphics card slot, while a dedicated Supplemental PCIe Power connector is included for high-power expansion hardware.

The motherboard provides four PCIe x16 physical slots, giving users additional flexibility for expansion cards and other PCIe hardware.

• PCI_E1: PCIe 5.0 x16 from CPU
• PCI_E2: PCIe 3.0 x1 from chipset
• PCI_E3: PCIe 4.0 x4 from chipset
• PCI_E4: PCIe 4.0 x4 from CPU

Triple M.2 Storage and SATA Connectivity
Storage performance is another major strength of the MSI Z890 GAMING WIFI6E. Three M.2 slots allow multiple NVMe SSDs to be installed, including one PCIe 5.0 x4 slot connected directly to the CPU.

The other two M.2 slots support PCIe 4.0 x4 through the chipset, with the third slot also supporting SATA mode. M.2 Shield Frozr thermal covers help protect compatible SSDs from excessive heat during sustained workloads.

Four SATA 6G ports provide additional storage capacity, with support for RAID configurations.

• M.2_1: PCIe 5.0 x4 from CPU, supporting 2242, 2260 and 2280 devices
• M.2_2: PCIe 4.0 x4 from chipset, supporting 2242, 2260 and 2280 devices
• M.2_3: PCIe 4.0 x4 or SATA mode from chipset, supporting 2242, 2260 and 2280 devices
• 4x SATA 6G ports
• SATA RAID: RAID 0, 1, 5 and 10
• M.2 NVMe RAID: RAID 0, 1 and 5

Wi-Fi 6E, 2.5G LAN and USB 20Gbps
Fast networking is built into the motherboard with Wi-Fi 6E support across the 2.4GHz, 5GHz and 6GHz bands, with supported speeds of up to 2.4Gbps. Bluetooth 5.3 provides additional wireless connectivity for compatible devices and peripherals.

For wired networking, the Realtek 8125D 2.5Gbps LAN controller provides higher network bandwidth than standard Gigabit Ethernet. MSI AI LAN Manager can also help prioritise gaming traffic to reduce network latency when supported configurations are used.

USB connectivity includes a rear USB 20Gbps Type-C port, six rear USB 5Gbps Type-A ports and additional front-panel USB connectivity. A front USB 20Gbps Type-C header allows compatible PC cases to make use of high-speed front-panel connectivity.

High Definition Audio and Display Outputs
The MSI Z890 GAMING WIFI6E uses the Realtek ALC897 audio codec with 7.1-channel High Definition Audio. The isolated analogue audio design helps separate audio circuitry from other motherboard components for cleaner signal performance.

For processors with integrated graphics, the motherboard provides HDMI 2.1 and DisplayPort 1.4 outputs, with both supporting resolutions up to 4K at 60Hz.

DDR5 Memory Support
Four DDR5 UDIMM slots provide substantial memory expansion for demanding systems. The motherboard supports up to 256GB of DDR5 memory, with Intel XMP 3.0 compatibility for easier memory performance tuning.

Supported memory speeds include:

• DDR5 6400 to 4800 MT/s under JEDEC specifications
• Up to 8800+ MT/s with supported overclocking configurations
• 1DPC 1R: up to 8800+ MT/s
• 1DPC 2R: up to 7200+ MT/s
• 2DPC 1R: up to 6400+ MT/s
• 2DPC 2R: up to 5600+ MT/s

Actual supported speeds depend on the installed processor, memory configuration and selected settings.

MSI EZ DIY Features for Easier PC Building:

MSI includes several design features aimed at making installation and maintenance simpler. EZ PCIe Clip II helps with graphics card removal, while the pre-installed I/O shield reduces installation time. The EZ Antenna uses a magnetic stand for easier wireless antenna positioning.

Four EZ Debug LEDs provide visual indicators that can help identify hardware startup issues during system assembly and troubleshooting.

The board also includes MSI Click BIOS X with tools such as Game Boost, AI Boost NPU overclocking, XMP profiles and M-Flash for BIOS updates.

RGB Lighting and Internal Connectivity
For customised PC builds, the motherboard includes MSI Mystic Light support with three ARGB V2 headers and one standard RGB header. This allows compatible lighting components to be connected and synchronised.

Internal connections include multiple fan headers, front-panel connections, USB headers, RGB connectors, a TPM 2.0 header and a dedicated PCIe power connector.

Key Technical Details

• Socket: Intel LGA1851
• Chipset: Intel Z890
• Form Factor: ATX
• CPU Support: Intel Core Ultra Processors, Series 2
• Memory: DDR5 UDIMM
• Memory Slots: 4
• Maximum Memory: 256GB
• Primary Graphics Slot: PCIe 5.0 x16
• M.2 Slots: 3
• SATA Ports: 4x SATA 6G
• Wired Network: Realtek 8125D 2.5Gbps LAN
• Wireless: Wi-Fi 6E
• Bluetooth: Bluetooth 5.3
• Audio: Realtek ALC897, 7.1-channel HD Audio
• Rear USB: 6x USB 5Gbps Type-A and 1x USB 20Gbps Type-C
• Front USB: 2x USB 5Gbps Type-A and 1x USB 20Gbps Type-C
• Video Outputs: 1x HDMI 2.1 and 1x DisplayPort 1.4
• Colour: Black
• Dimensions: 30.4 x 24.3 cm

Whats' include

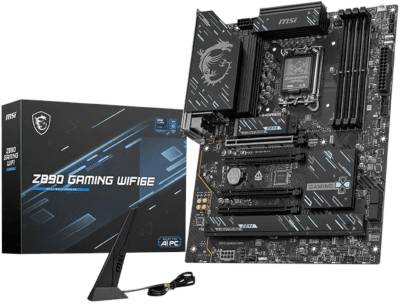

• MSI Z890 GAMING WIFI6E Motherboard - Black x1
• EZ Wi-Fi Antenna x1
• SATA Cables x2
• M.2 Screw and Standoff Sets x3
• 1 to 2 EZ Conn-Cable V1 x1
• Quick Installation Guide x1

Part Number and Product Identification
The part number / SKU for this MSI Z890 GAMING WIFI6E motherboard is Z890GAMINGPLUSWIFI6E. This identifier can be used when checking product compatibility, availability or ordering the exact motherboard model.

Why Choose MSI Z890 GAMING WIFI6E
The MSI Z890 GAMING WIFI6E combines Intel Core Ultra Series 2 support, DDR5 memory, PCIe 5.0 expansion, fast NVMe storage and high-speed networking in a practical ATX motherboard design. It is well suited to users building a modern gaming PC that also needs the flexibility to handle creative applications, productivity workloads and AI-enabled software.

With triple M.2 storage, 2.5Gbps Ethernet, Wi-Fi 6E, USB 20Gbps, reinforced PCIe connectivity and extensive DIY-focused features, it provides the connectivity and expansion required for a high-performance PC build.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	Z890 GAMING PLUS WIFI6E
Chipset	INTEL Z890
CPU	Supports Intel Core Ultra Processors (Series 2)
	LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	1DPC 1R Max speed up to 8800+ MT/s
	1DPC 2R Max speed up to 7200+ MT/s
	2DPC 1R Max speed up to 6400+ MT/s
	2DPC 2R Max speed up to 5600+ MT/s
	Supports Intel POR Speed and JEDEC Speed
	Supports Memory Overclocking and Intel XMP 3.0
	Supports Dual-Controller Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM
	The DIMM slots on this motherboard have double-sided latches.
Onboard Graphics	1x HDMI
	Support HDMI 2.1, maximum resolution of 4K 60Hz
	1x DisplayPort
	Support DisplayPort 1.4, maximum resolution of 4K 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Audio	Realtek ALC897 Codec
	7.1-Channel High Definition Audio
Storage	3x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
	Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front)
	6x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
	1x USB 20Gbps Type C (Rear)
	1x USB 20Gbps Type C (Front)
LAN	Realtek 8125D 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	4x System Fan
	1x EZ Conn-header (JAF_1)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E Solution
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports Bluetooth 5.3**, FIPS, FISMA
	* 6GHz band support may depend on every country's regulations and Wi-Fi 6E will be ready in Windows 11 version SV3.
	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.3 support depends on Windows 11 plan.
LED FEATURE	4x EZ Debug LED

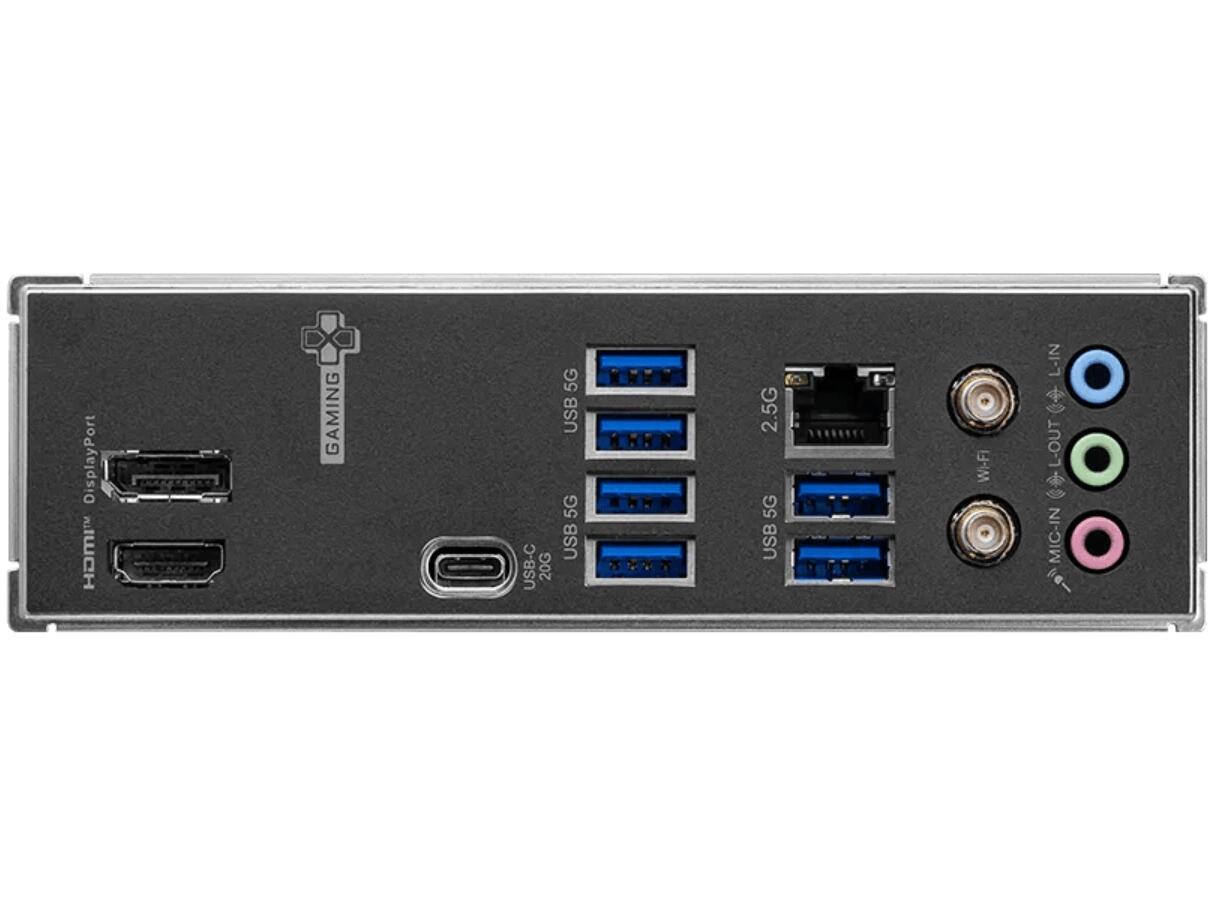

BACK PANEL PORTS	DisplayPort
	USB 5Gbps Type-A ports
	2.5G LAN
	Wi-Fi / Bluetooth
	Audio Connectors
	HDMI
	USB 20Gbps Type-C port
	USB 5Gbps Type-A ports
OPERATING SYSTEM	Support for Windows 11 64-bit
BOX CONTENT
PCB Info	ATX
	243.84mmx304.8mm
